1982 Trailfire Special (Canadian Special)

Post by TOYMECH »

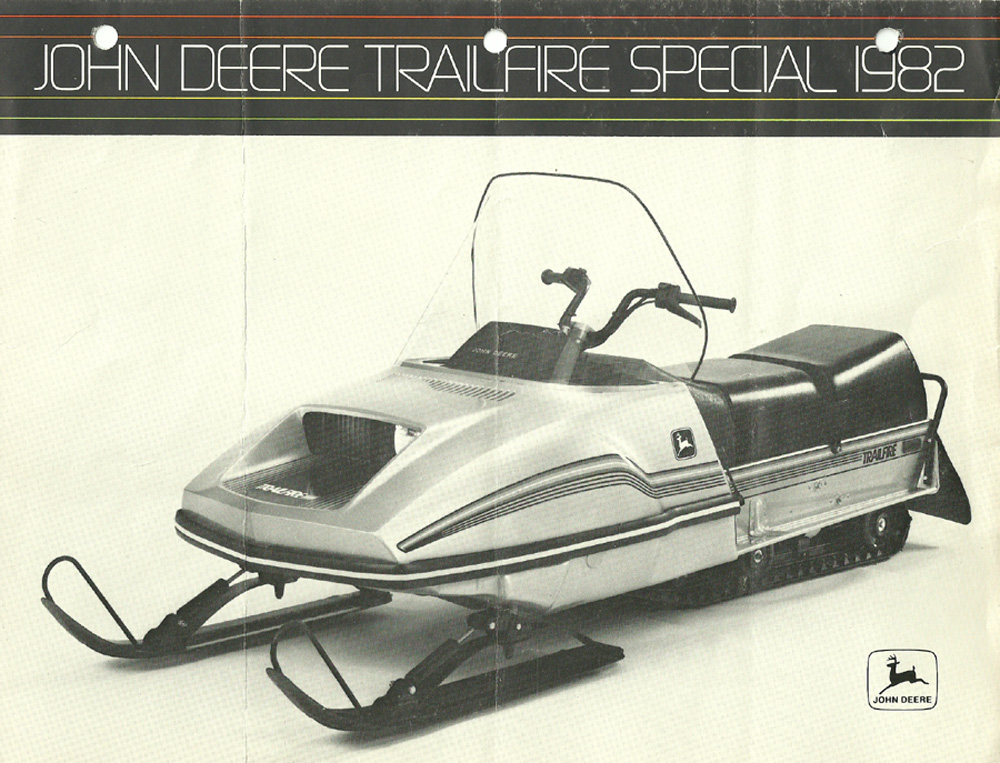

I had one of the board members ask me to share a scan of the 1 page literature i have for the 1982 Trailfire Special. I finally made time to do it so i thought i would share it here on the board for anyone interested.
I also was lucky today in the fact I found and brought home a 1982 Trailfire Special which has the correct VIN (as found in the parts manual - J34SL.......) and has the features listed on the literature still intact. If any board members are interested, please let me know via this thread and i will be happy to take pictures of the features unique to this model of Trailfire and post them on this thread.
What is really cool is the sled has the original selling dealer sticker on it who is a friend of mine that used to be a CP dealer not far from where i bought the sled.
Greg

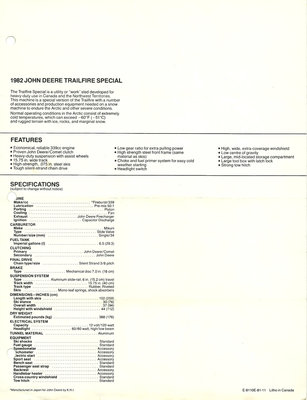

TRAILFIRE SPECIAL 1982 LITERATURE BACK.jpg
TRAILFIRE SPECIAL 1982 LITERATURE FRONT.jpg
Last edited by TOYMECH on Sun Apr 07, 2013 9:15 pm, edited 2 times in total.
1981 Trailfire 440 (Original Owner)
1980 Liquifire
1981 Sportfire
1983 Sprintfire
1982 Snowfire
1978 CC Liquifire
1979 340 Trailfire
1982 Trailfire Special
User avatar
TOYMECH
Posts: 317
Joined: Thu Nov 03, 2005 12:00 am
Real Name: Greg
Location: Ontario Canada

Re: 1982 Trailfire Special (Canadian Special)

Post by TOYMECH »

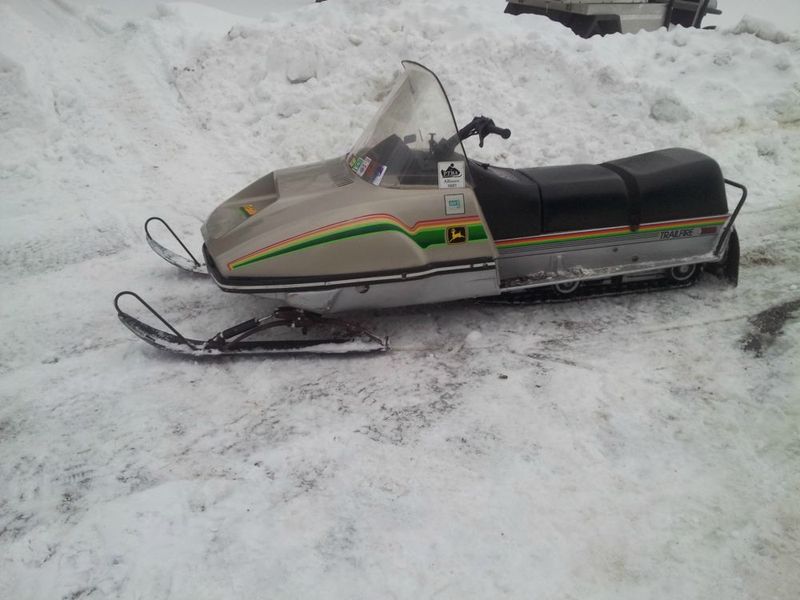

A picture of the sled i brought home today from the ad i found it in. If you look carefully, you can see the marginal snow wheels in the skid frame as well as the handlebar clamp mounted push-pull primer which is listed in the literature as one of the features of the Trailfire Special. Over the course of it's life, somone replaced the hood and windshield with one for a 1979 440 Trailfire but, no big deal, just happy to find a sled that i have never set eyes on let alone would have!:
Attachments
1981 Trailfire 440 (Original Owner)
1980 Liquifire
1981 Sportfire
1983 Sprintfire
1982 Snowfire
1978 CC Liquifire
1979 340 Trailfire
1982 Trailfire Special
JDT
Posts: 5561
Joined: Wed Nov 21, 2007 1:00 am
Real Name: Todd
Location: Milbank South Dakota

Re: 1982 Trailfire Special (Canadian Special)

Post by JDT »

Headlight switch? Is that on the dash?
Todd Schrupp

Milbank SD
User avatar
TOYMECH
Posts: 317
Joined: Thu Nov 03, 2005 12:00 am
Real Name: Greg
Location: Ontario Canada

Re: 1982 Trailfire Special (Canadian Special)

Post by TOYMECH »

Todd - Believe it or not, yes it has a headlamp switch on the flat or horizontal surface of the dash in front of the tachometer or where the tachometer is located. If you look REALLY closely at the literature picture, you can just make out the lever of the switch. It is a simple, single throw toggle switch with a boot over it. In the parts listings, it identifies a switch, small wiring harness, nut and boot for the headlight switch option. I will take some pictures of mine when i get an oppourtunity and post so all can see. I would be curious as to why the machine would be equipped with that option. Maybe, perhaps, something to do with using it for hunting in the Arctic so the headlamp could be shut off so as not to alert wildlife..? I thought of that reason since one John Deere employee i talked to mentioned that a lot of these sleds were sent up for the Inuit to use...just my 2 cents...
1981 Trailfire 440 (Original Owner)
1980 Liquifire
1981 Sportfire
1983 Sprintfire
1982 Snowfire
1978 CC Liquifire
1979 340 Trailfire
1982 Trailfire Special
ljm
Posts: 705
Joined: Tue Jan 26, 2010 10:05 am
Real Name: Lloyd
Location: near Port Elgin, Ontario

Re: 1982 Trailfire Special (Canadian Special)

Post by ljm »

Greg

Once again you find the coolest things..

I'm looking forward to seeing this sled

Lloyd
Several Deere's
Several Kawasaki's

ACSCC #1534
User avatar
JoeRainville
Posts: 4355
Joined: Tue Aug 02, 2005 12:00 am
Real Name: "John Deere Joe"
Location: Fort Worth, Texas
Contact:

Re: 1982 Trailfire Special (Canadian Special)

Post by JoeRainville »

Hey Greg,

Another great find buddy! Please post more pic's. I would like to request pic's of the skid since that was the only 'Fire series Deere built with a wheel kit and cleated track.

Congrats on bringing her home,
-Joe
Honorary Tech Editor

Chuck Norris doesn't get frost bite. He bites the frost.
User avatar
TOYMECH
Posts: 317
Joined: Thu Nov 03, 2005 12:00 am
Real Name: Greg
Location: Ontario Canada

Re: 1982 Trailfire Special (Canadian Special)

Post by TOYMECH »

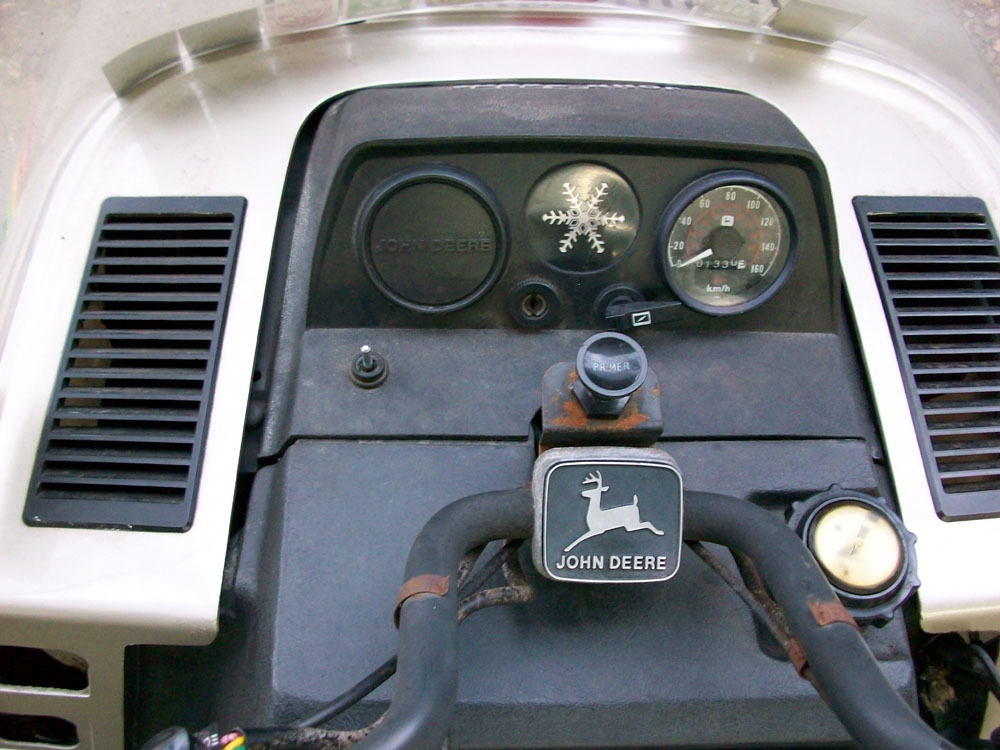

Todd, Here is a couple of pictures of the headlight switch above and below the dash:
TRAILFIRE SPECIAL HEADLIGHT SWITCH UNDERSIDE.jpg
Attachments
TRAILFIRE SPECIAL CONTROLS.jpg
Last edited by TOYMECH on Sun Apr 07, 2013 9:12 pm, edited 1 time in total.
1981 Trailfire 440 (Original Owner)
1980 Liquifire
1981 Sportfire
1983 Sprintfire
1982 Snowfire
1978 CC Liquifire
1979 340 Trailfire
1982 Trailfire Special
User avatar
WinnipegStPaul9
Posts: 5577
Joined: Sat Jul 23, 2005 12:00 am
Real Name: Don Amber
Location: Churubusco, IN

Re: 1982 Trailfire Special (Canadian Special)

Post by WinnipegStPaul9 »

Greg, you have a piece of history there!! Great find and thank you so much for sharing. The more pictures, the better. Take care my friend!

DA
Feel free to check out our website www.buscobullet.com for restorations or parts.
User avatar
TOYMECH
Posts: 317
Joined: Thu Nov 03, 2005 12:00 am
Real Name: Greg
Location: Ontario Canada

Re: 1982 Trailfire Special (Canadian Special)

Post by TOYMECH »

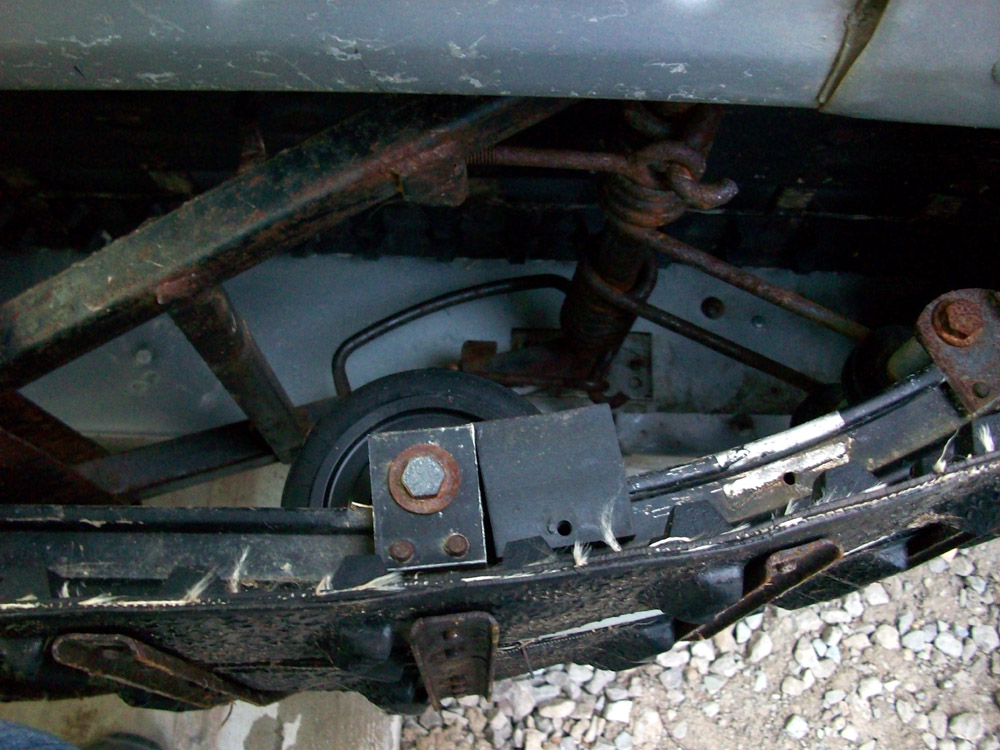

Joe, Here is some pictures of the skidframe for you:
TRAILFIRE SPECIAL SKID FRAME.jpg
TRAILFIRE SPECIAL SKID FRAME FRONT.jpg
1981 Trailfire 440 (Original Owner)
1980 Liquifire
1981 Sportfire
1983 Sprintfire
1982 Snowfire
1978 CC Liquifire
1979 340 Trailfire
1982 Trailfire Special
User avatar
TOYMECH
Posts: 317
Joined: Thu Nov 03, 2005 12:00 am
Real Name: Greg
Location: Ontario Canada

Re: 1982 Trailfire Special (Canadian Special)

Post by TOYMECH »

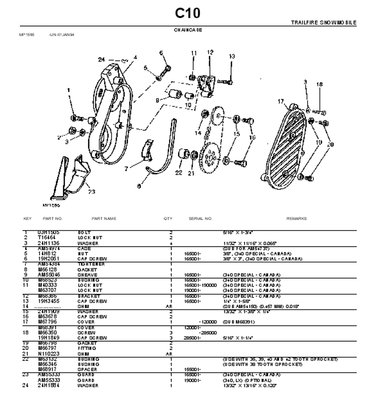

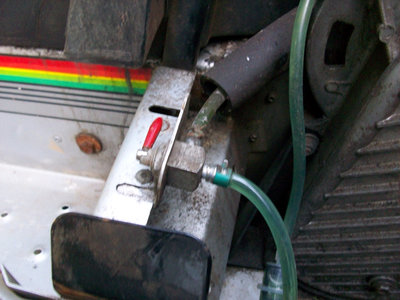

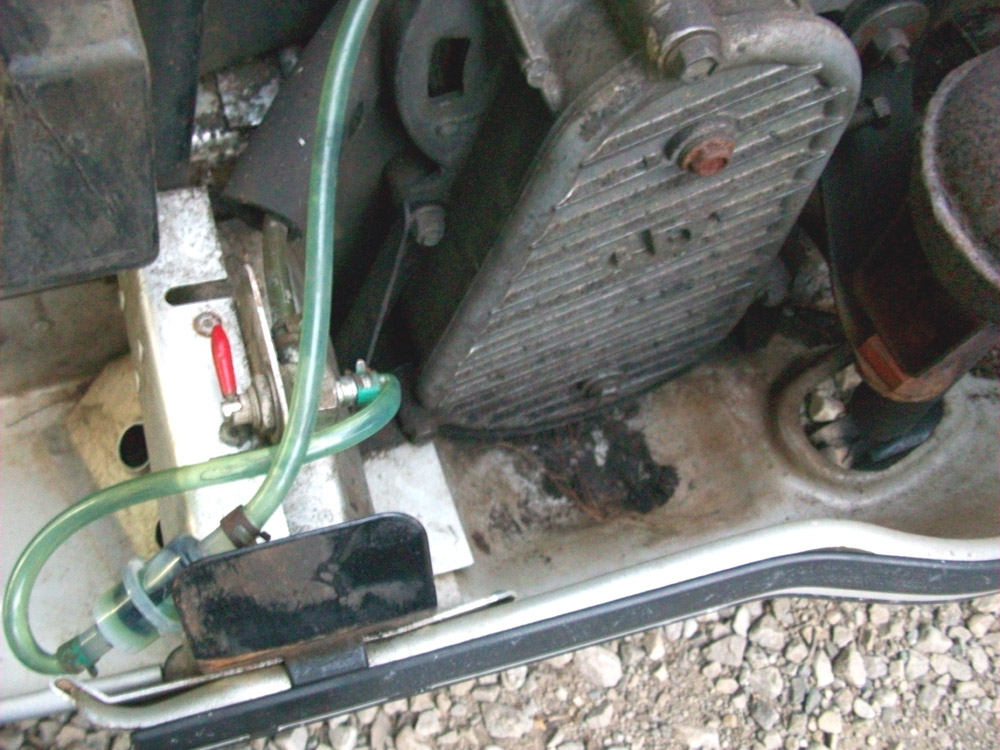

Some pictures of the chain case guard (same type of chaincase as on the Liquifire with adjustable roller) and fuel shutoff. An image from the parts listing showing a better or clearer image of what the chain case guard looks like:
TRAILFIRE SPECIAL CHAIN_CASE GUARD.jpg
TRAILFIRE SPECIAL FUEL SHUTOFF.jpg
TRAILFIRE SPECIAL PARTS CHAIN CASE.jpg
Last edited by TOYMECH on Sun Apr 07, 2013 9:59 pm, edited 2 times in total.
1981 Trailfire 440 (Original Owner)
1980 Liquifire
1981 Sportfire
1983 Sprintfire
1982 Snowfire
1978 CC Liquifire
1979 340 Trailfire
1982 Trailfire Special
User avatar
TOYMECH
Posts: 317
Joined: Thu Nov 03, 2005 12:00 am
Real Name: Greg
Location: Ontario Canada

Re: 1982 Trailfire Special (Canadian Special)

Post by TOYMECH »

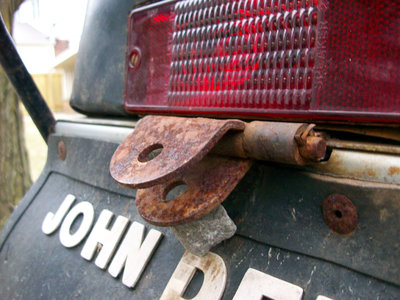

The "heavy duty" style hitch:
TRAILFIRE SPECIAL HITCH.jpg
1981 Trailfire 440 (Original Owner)
1980 Liquifire
1981 Sportfire
1983 Sprintfire
1982 Snowfire
1978 CC Liquifire
1979 340 Trailfire
1982 Trailfire Special
User avatar
TOYMECH
Posts: 317
Joined: Thu Nov 03, 2005 12:00 am
Real Name: Greg
Location: Ontario Canada

Re: 1982 Trailfire Special (Canadian Special)

Post by TOYMECH »

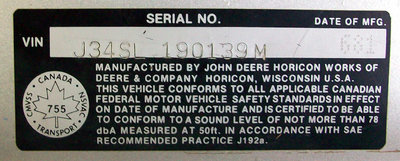

VIN stamp/decal:
TRAILFIRE SPECIAL VIN.jpg
1981 Trailfire 440 (Original Owner)
1980 Liquifire
1981 Sportfire
1983 Sprintfire
1982 Snowfire
1978 CC Liquifire
1979 340 Trailfire
1982 Trailfire Special
User avatar
TOYMECH
Posts: 317
Joined: Thu Nov 03, 2005 12:00 am
Real Name: Greg
Location: Ontario Canada

Re: 1982 Trailfire Special (Canadian Special)

Post by TOYMECH »

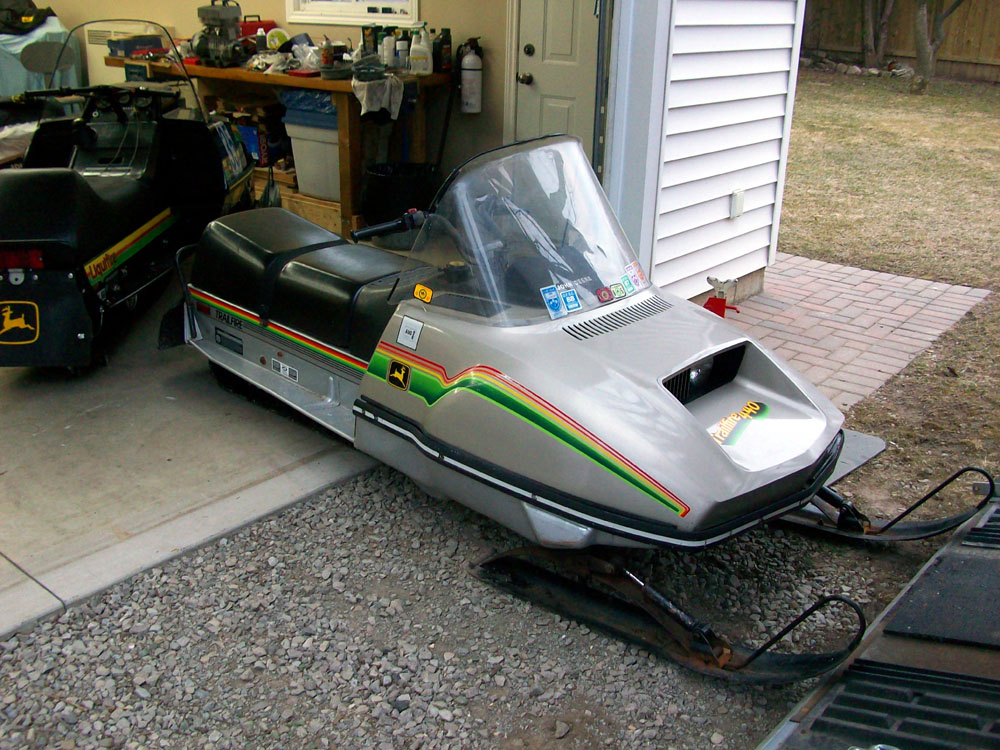

A picture of the sled - now at home with the others :) :
TRAILFIRE SPECIAL RIGHT FRONT.jpg
1981 Trailfire 440 (Original Owner)
1980 Liquifire
1981 Sportfire
1983 Sprintfire
1982 Snowfire
1978 CC Liquifire
1979 340 Trailfire
1982 Trailfire Special
User avatar
TOYMECH
Posts: 317
Joined: Thu Nov 03, 2005 12:00 am
Real Name: Greg
Location: Ontario Canada

Re: 1982 Trailfire Special (Canadian Special)

Post by TOYMECH »

Hey Joe, Thanks! It's not like i NEEDED another sled, but this one needed to be saved - as you can likely agree!
Don, Thanks! I agree, it's a piece of history in more ways than one. First, i have never seen one "in the flesh" until i found this one. Secondly, My friends were the original selling dealer! In fact, i called them today to ask them about the Trailfire Special - He did remember them and (in his words) described it as a "souped-up" version of the regular Trailfire. He claimed he had never sold one until i told him that this one had one of his dealer stickers on it - on the seat right above the tail light.... "Oh, i guess i DID sell one of those then!"....... Needless to say, he wants to see it and he just MIGHT still have the dealer portion of the original bill of sale still in his files......
1981 Trailfire 440 (Original Owner)
1980 Liquifire
1981 Sportfire
1983 Sprintfire
1982 Snowfire
1978 CC Liquifire
1979 340 Trailfire
1982 Trailfire Special
AirborneX4Special
Posts: 1450
Joined: Sat Jan 30, 2010 10:54 am
Real Name: Pat
Location: N. IL

Re: 1982 Trailfire Special (Canadian Special)

Post by AirborneX4Special »

TOYMECH wrote:The "heavy duty" style hitch:
TRAILFIRE SPECIAL HITCH.jpg
That's so you are able to pull the BIG wagons behind your winter tractor.......
