I have one in southeast Michigan. Started restoration, but might consider selling.

So I believe the 76-78 Deeres used the AM 53193 tach. All others are not compatible. Maybe its a 2 pulse vs 6 pulse thing? Anyone know?
Are there any other tachs I can use on my 76 Cyclone?

Thanks

No fuse in the line. The instruction sheet has 73, 74 listed, and then Spitfire and Trailfire.

I am trying to add a tachometer to my 76 cyclone 340. I picked up a NOS AM52346. It has a yellow lead for light, and two leads for the tach. According to my wiring diagram, the yellow/red wire should connect to black, and the red should connect to brown on the sled. When I connect it this way the ta...

When Pat pointed out the 78 dropped it, I agreed.

Thanks Jason. I'm hoping to get her back together while there is still snow on the ground here. Getting close!

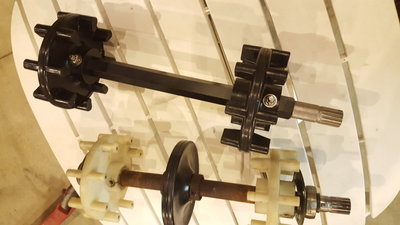

Moving forward without the center idler. Shaft drilled, drivers pressed on and bolted. Shaft primed and painted.

Joe,
I pressed on driver on with no issue. Do you think I should get a third one for the center position on my Cyclone? Now is the time to add it easily. I know you are running low, but do you have one available?

Tom

Sweet. Thanks for the pic. Did you bolt them on also?

My mistake. The shaft is 1 1/8, not 1 1/4. These will be tight but should press on.

So I've been through two used shafts and found both had spun the outer bearing. I bought a nos hex shaft and I have new 8 lug drive sprockets. My question is the shaft is 1.25 and the sprocket holes are 1.08 Bothe hex. That seems like a lot of material to press on. Anyone done this?

I have the parts I need coming. Thanks for all the responses.

Thanks for all the responses. I am looking for a 79-80 Trailfire hex shaft now. If you have one available please let me know.
Sledstorm

Looking for a hex drive shaft and sprockets from a trailfire. I want to fit them to my 76 cyclone 340.
Let me know if you have something.
Thanks,
Sledstorm

Will a trailfire shaft use the same gears? Anything else have to change?
Thx
Sledstorm
