TR800 Driven Clutch info needed

General topics related to John Deere Snowmobiles
Jd sled rider
Posts: 204
Joined: Mon Dec 30, 2013 8:03 pm
Real Name: Lincoln Huffman
Location: Michigan

Re: TR800 Driven Clutch info needed

Post by Jd sled rider »

I was finally able to load a picture
Attachments
2015 vintage challenge finisher on 81 liquifire
2016 vintage challenge finisher on a wounded 83 Liquifire
sledhead16
Posts: 1386
Joined: Sat Dec 14, 2013 3:39 pm
Real Name: Allan Campbell
Location: Saint Peter MN

Re: TR800 Driven Clutch info needed

Post by sledhead16 »

Those shims are to assist in belt deflection for new belts or worn belts
1975 340/s Speed Run Sled
1975 340/s I500 #161
1980 Liquifire SN# 4995 From WA Speed Run Sled
1980 Liquifire SN# 4996 From MN
1983 Sportfire
1984 Liquifire Deep Snow Tunnel 4/6 motor
1984 Sprintfire (2)

***Duelling Deere Garage***
Liquifire 4/6
Posts: 1035
Joined: Thu Mar 08, 2007 1:00 am
Location: Roblin, MB

Re: TR800 Driven Clutch info needed

Post by Liquifire 4/6 »

sledhead16 wrote:Those shims are to assist in belt deflection for new belts or worn belts
I guess I didn't explain that spacer's location very well. I wasn't referring to the anti-creep shims that are located immediately behind the clutch retaining washer but rather to a thicker spacer that mounts between the helix and sheave. It appears these spacers were used only on the 80-84 Liquifire models with different thicknesses used depending on the year. The Fine Tune manual shows the measurements so I think I'll just machine one out of some thick wall tubing.
Attachments

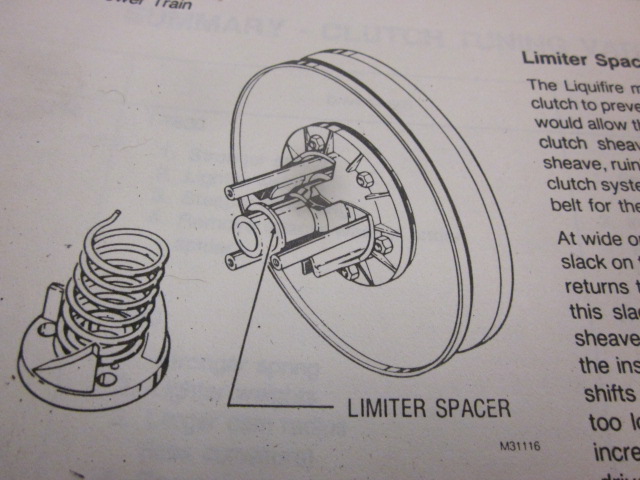

picture of spacer taken from fine tune anual
picture of spacer taken from fine tune anual

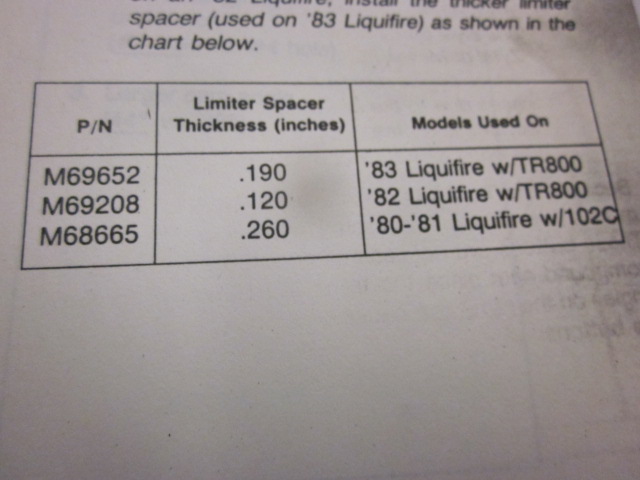

measurements versus model years
measurements versus model years
Peter from Roblin, Manitoba
sledhead16
Posts: 1386
Joined: Sat Dec 14, 2013 3:39 pm
Real Name: Allan Campbell
Location: Saint Peter MN

Re: TR800 Driven Clutch info needed

Post by sledhead16 »

Yes I have those spacers on my 80s. Its a thicker ring type spacer, I have just one on each
