1976 340 Cyclone Restoration

This is where you can post the story & photos of your John Deere Snowmobile project.
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

1976 340 Cyclone Restoration

Post by eppjd »

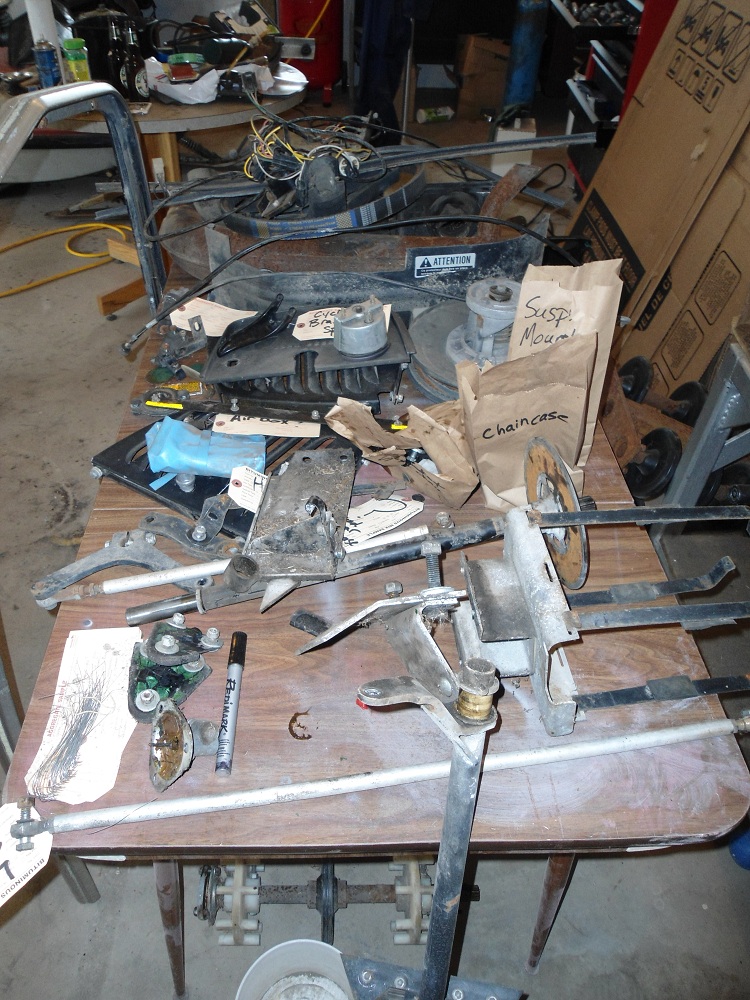

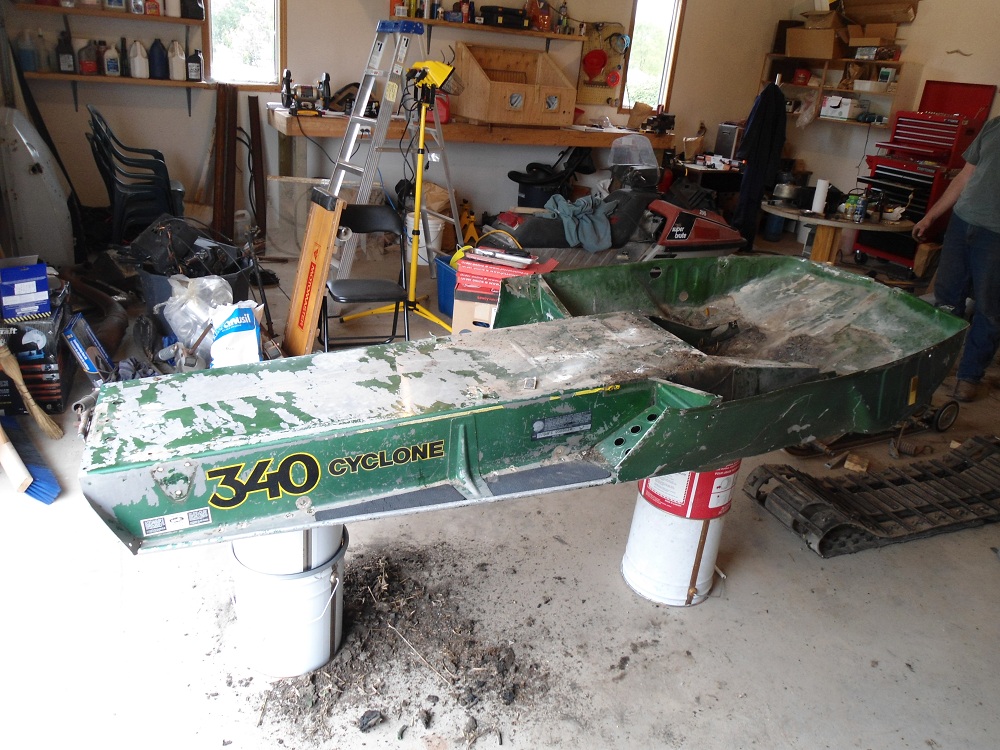

Well this project has been 10 months in the making so far, since Scott and I started the initial teardown, I figured it was about time to start a thread on the restoration of my 76 340 Cyclone rider. I didn't realize until after we had tore down the machine I never got a complete "before" picture, so these will have to do for what we started with.
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

Fuel tank before (well, actually the one I wrecked by using a putty knife to scrape away oxidization, notice the score marks :doh: . I painted a different tank) and after painting, as well as the fan cover and dash.
july 8 2012 034s.jpg
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

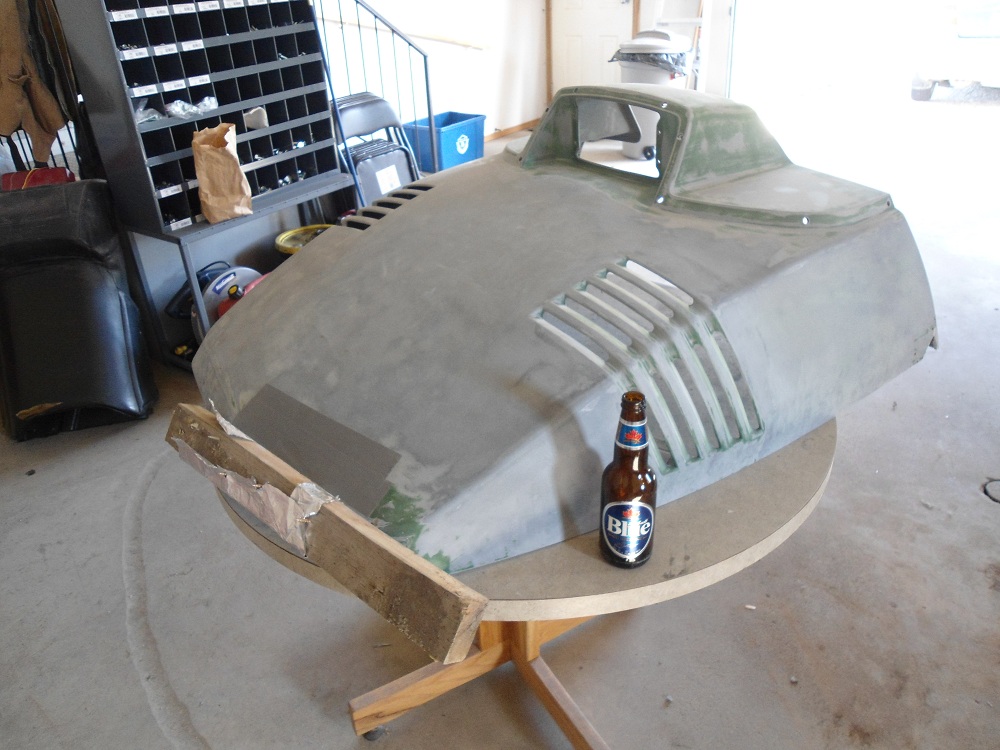

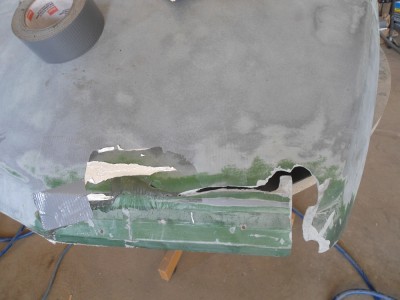

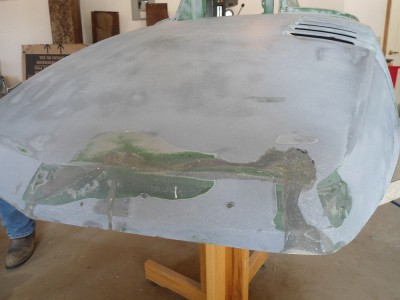

Work on the hood.
july 8 2012 007s.jpg
july 8 2012 009s.jpg
july 8 2012 011s.jpg
july 8 2012 045s.jpg
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

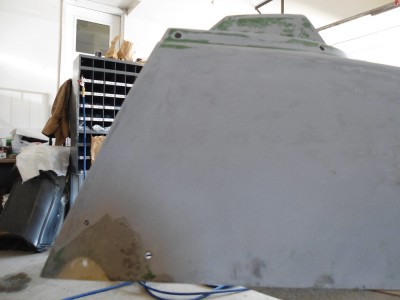

more hood
july 8 2012 048s.jpg
july 8 2012 047s.jpg
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

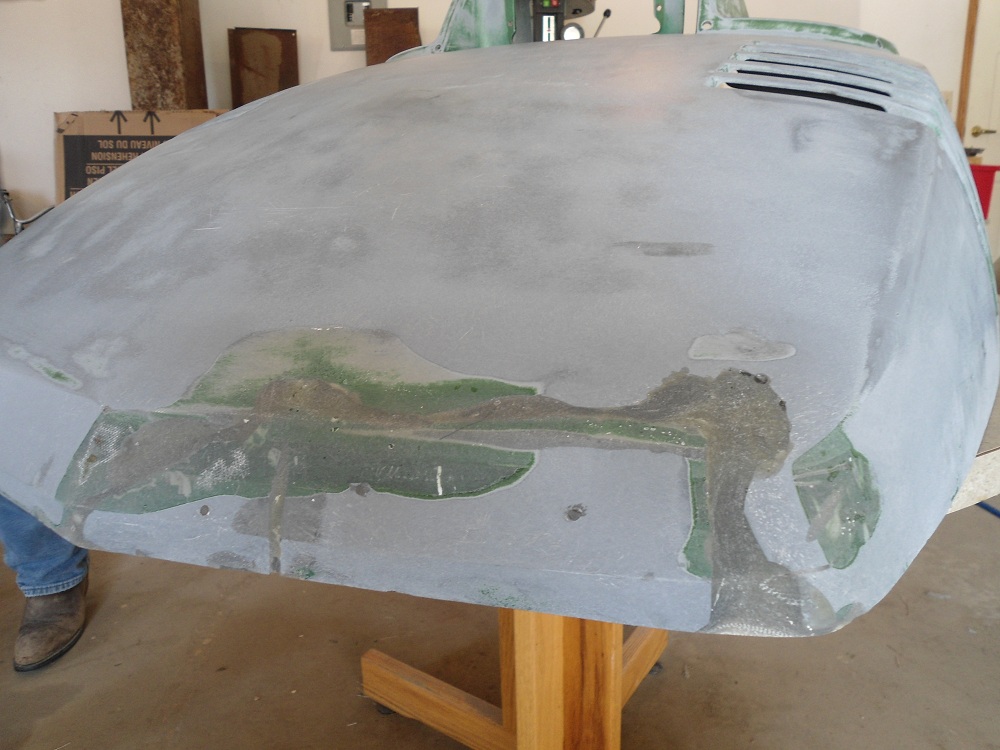

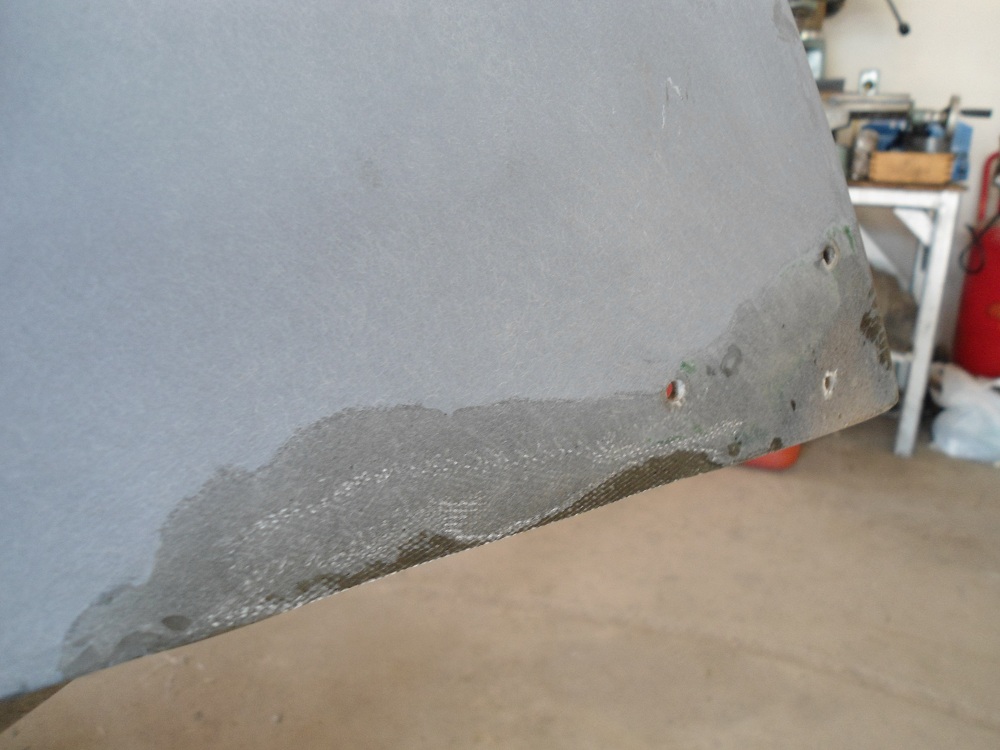

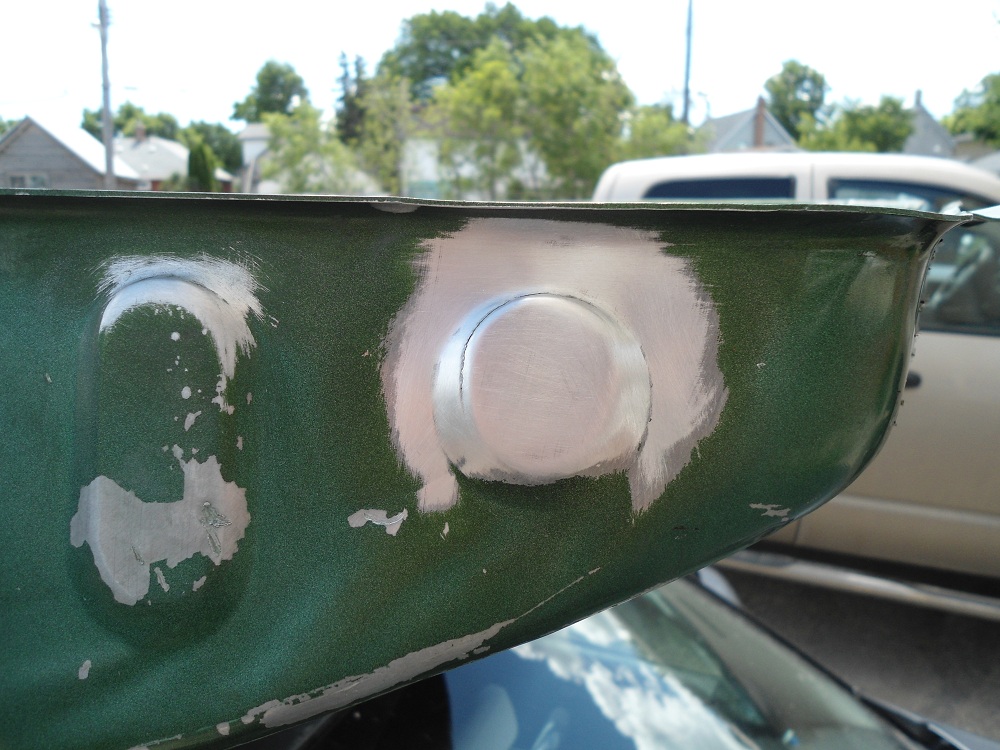

I got a welder to fill the holes that had been drilled for the licence plate, and a crack on the pan around one of the ribs - I think they were off when they punched that side of the pan and made some weak spots. My other Cyclone is also cracked in the same place, I didn`t want the paint to crack there so I thought the best option was to weld it.
july 8 2012 041s.jpg
july 8 2012 043s.jpg
july 8 2012 042s.jpg
The guy at the welding shop told me he had never had someone bring in a snowmobile strapped to the roof of a Jetta :dance:
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

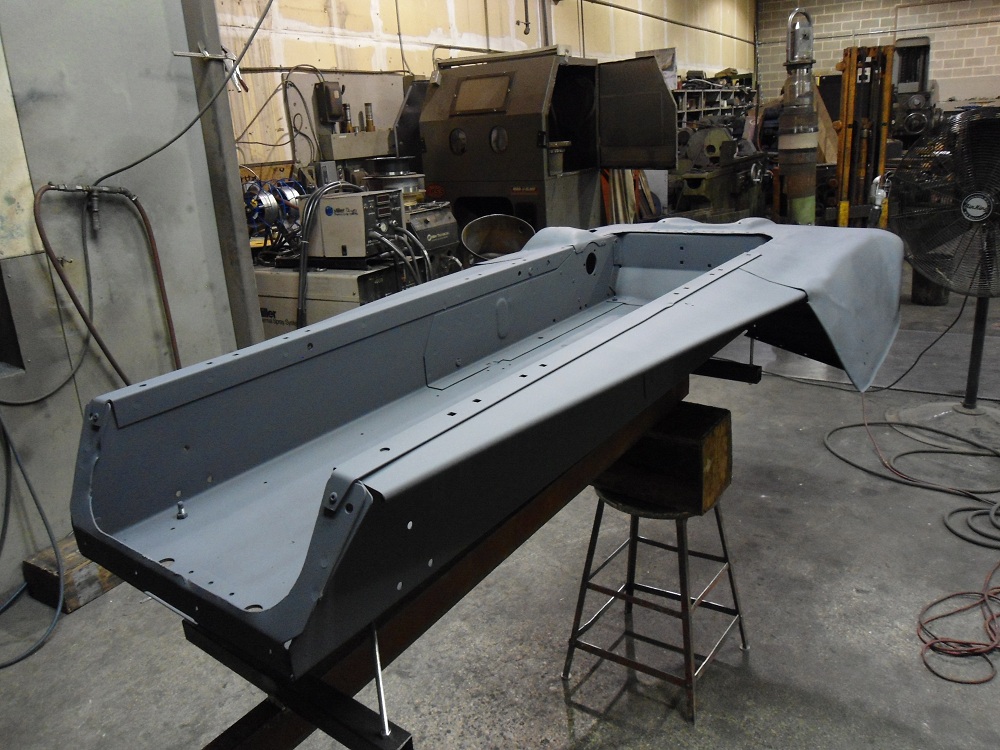

The stripped tunnel. We started using baking soda to blast the paint off but that turned out to be a very painstaking process, we tried brake cleaner to take the paint off with some success but in the end bought furniture stripper to get most of the paint, and soda blasted the rest of it after. We used this same process for the smaller aluminum bits as well.
july 8 2012 054s.jpg
july 8 2012 055s.jpg

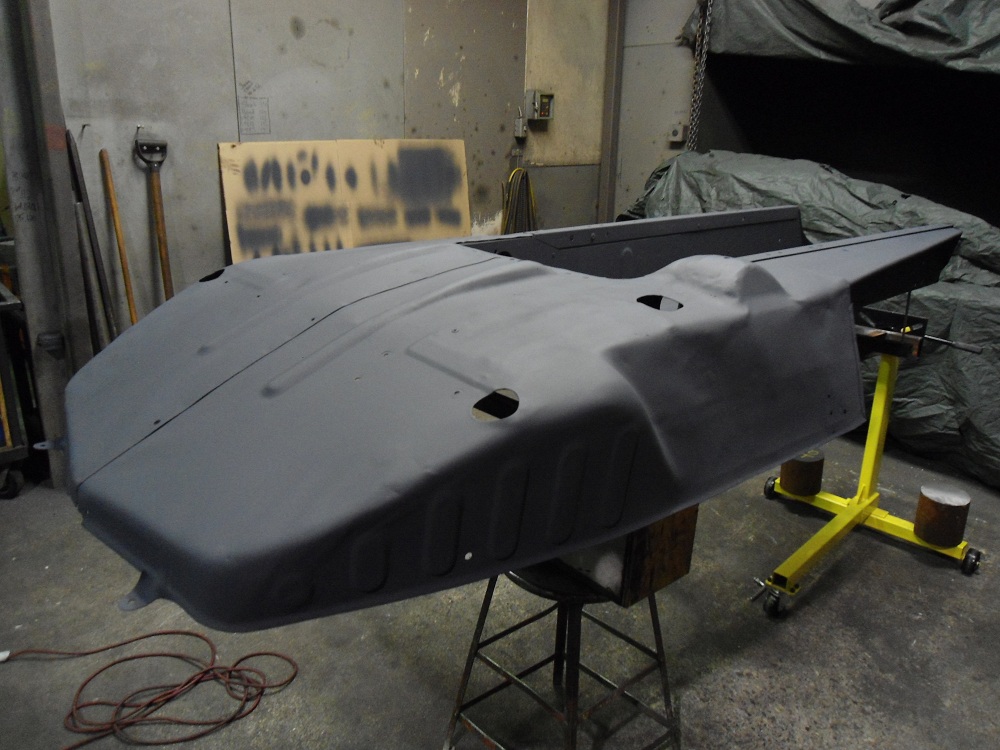

The first coat of primer, a self etching primer to bond to the aluminum. I hope that the paint lasts longer than they did from the factory. We sprayed this with rattle cans but in the future I would buy a quart of the stuff.
july 8 2012 057s.jpg
The second coat of primer, a tinted shade recommended by the guy who mixed up my paint.
july 8 2012 065s.jpg
july 8 2012 066s.jpg
This was my first ever attempt at using a paint spray gun, the primer covered really well but I did get some orange peel - maybe due to how hot and humid it was and/or the paint not atomizing 100% out of the gun, hopefully we can wet sand it out with 800 grit sandpaper.
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

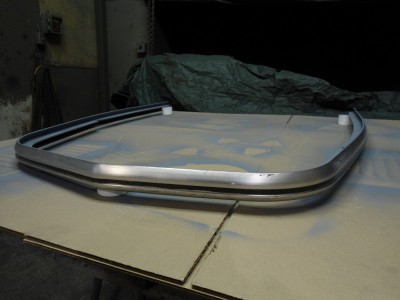

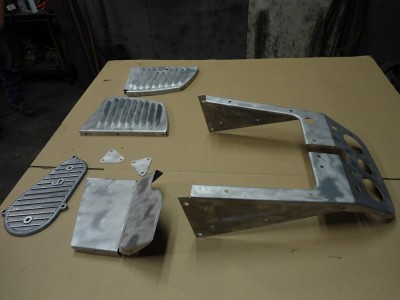

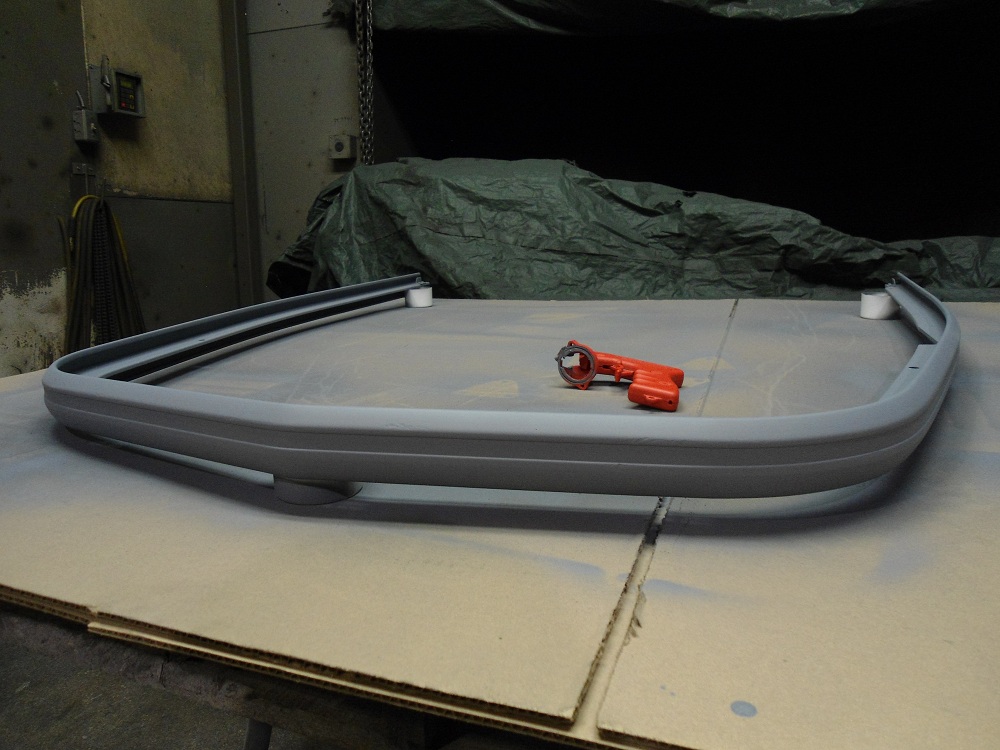

Little bits, and the front bumper before and after self etching primer.
july 8 2012 070s.jpg
july 8 2012 072s.jpg
july 8 2012 075s.jpg
july 8 2012 076s.jpg
and thank you Joe for that tip about the bumper, although that black strip under the decal would have raised some questions, it will be much easier to make it look nice again with some bondo over the primer and painted black afterwards.
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

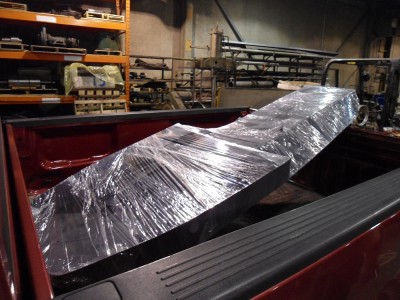

We have been shrink wrapping everything after the primer has dried to help protect the primer from shelf wear until we paint them. At this point we also have the skis, jackshaft, driveshaft, and the skid disassembled in primer and packed away ready for painting. The tunnel is now resting nicely against the wall of my one bedroom apartment :laugh:
july 8 2012 074s.jpg
july 8 2012 068s.jpg
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
cledussnow77
Posts: 573
Joined: Mon Nov 12, 2007 1:00 am
Real Name: Ed Jones
Location: northwest ohio

Re: 1976 340 Cyclone Restoration

Post by cledussnow77 »

:clap: So far so good, keep the pics rollin, thats what we like to see. :beers; :dance:
Nothing Runs Like A Deere
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

Painting this weekend, starting this afternoon shooting all the black. Hope all goes well.
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
User avatar
skoalmint
Posts: 759
Joined: Fri Aug 06, 2010 11:33 pm
Location: Circleville Oh

Re: 1976 340 Cyclone Restoration

Post by skoalmint »

Hello Adam,Did your parts make it ?If not they should be there by Tues.LMK Brock
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

Haven't got an email saying they've arrived but I will let you know Brock. Thanks, Adam
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

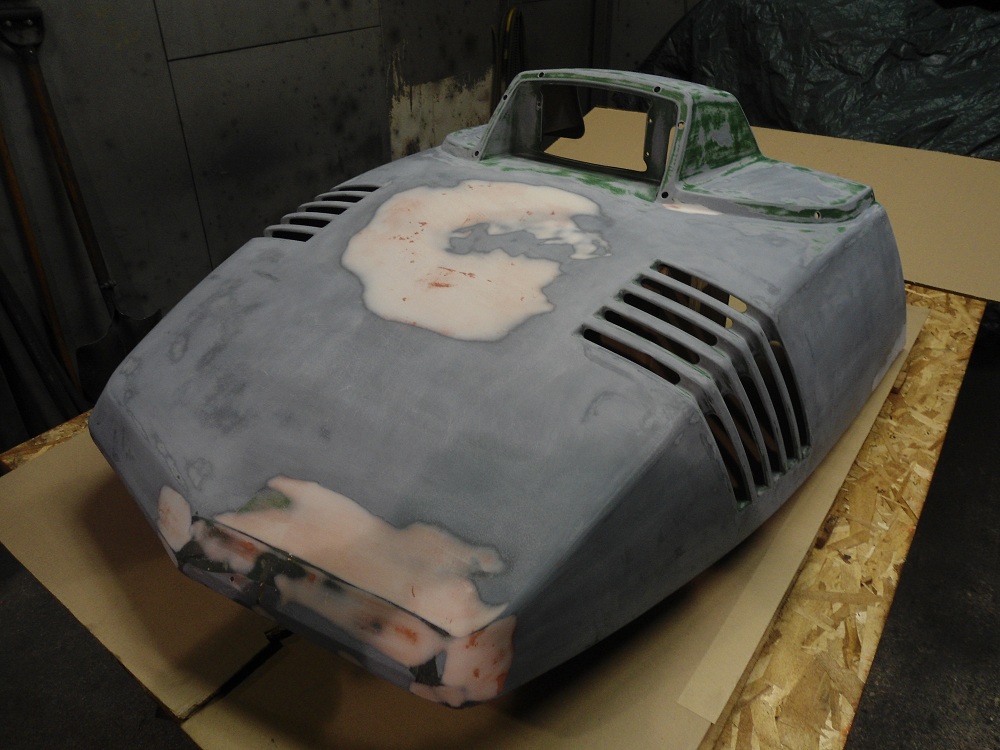

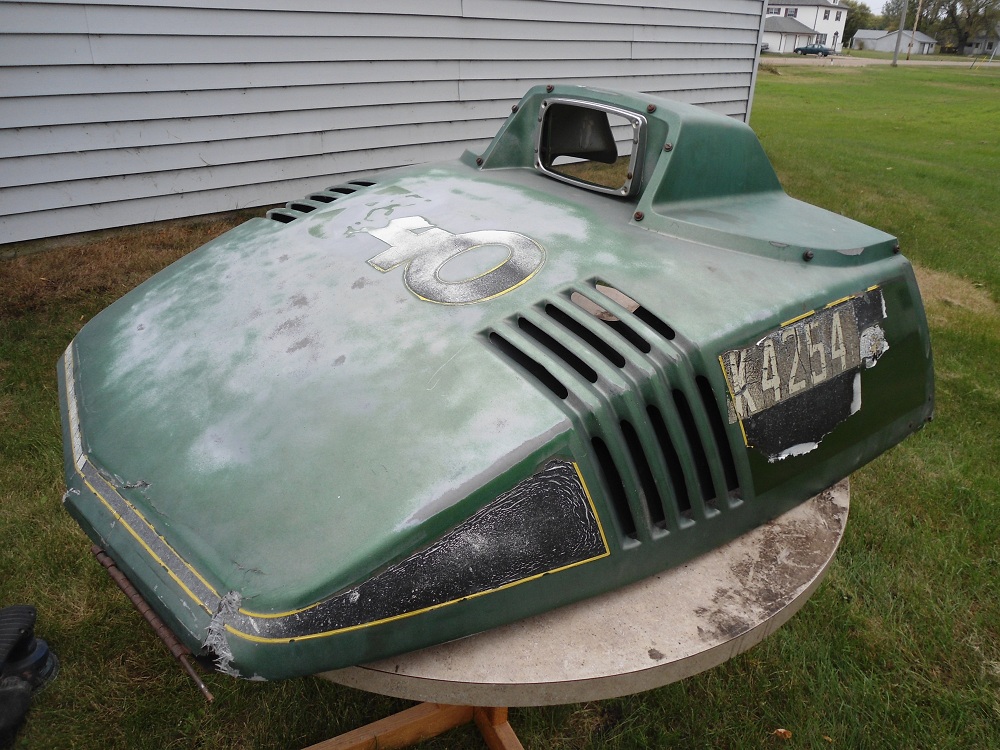

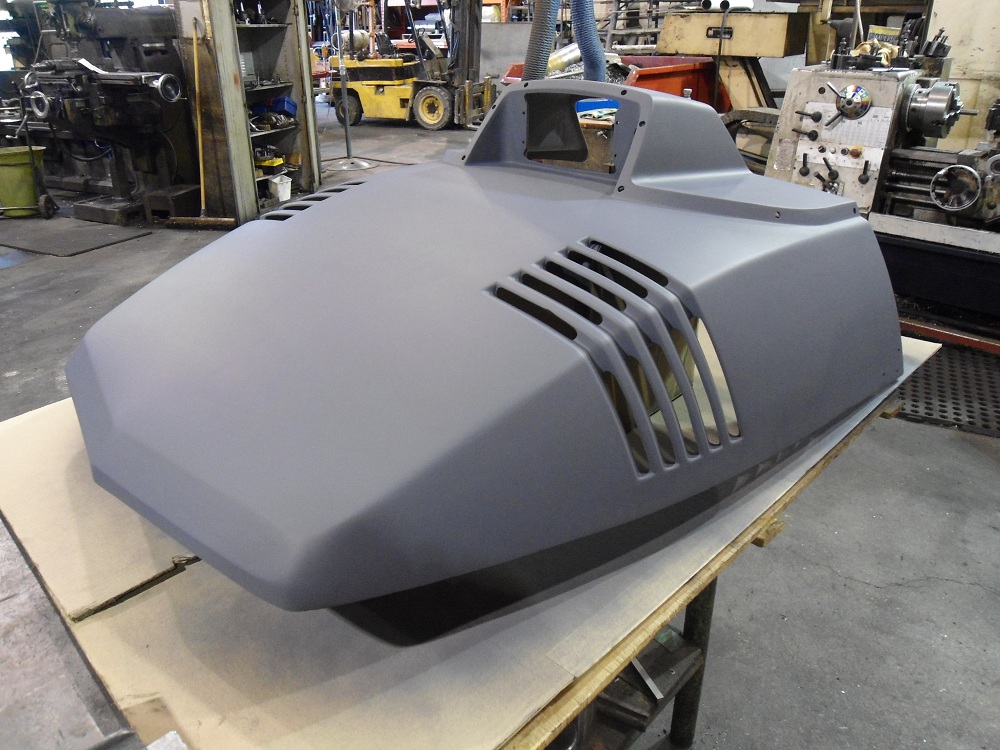

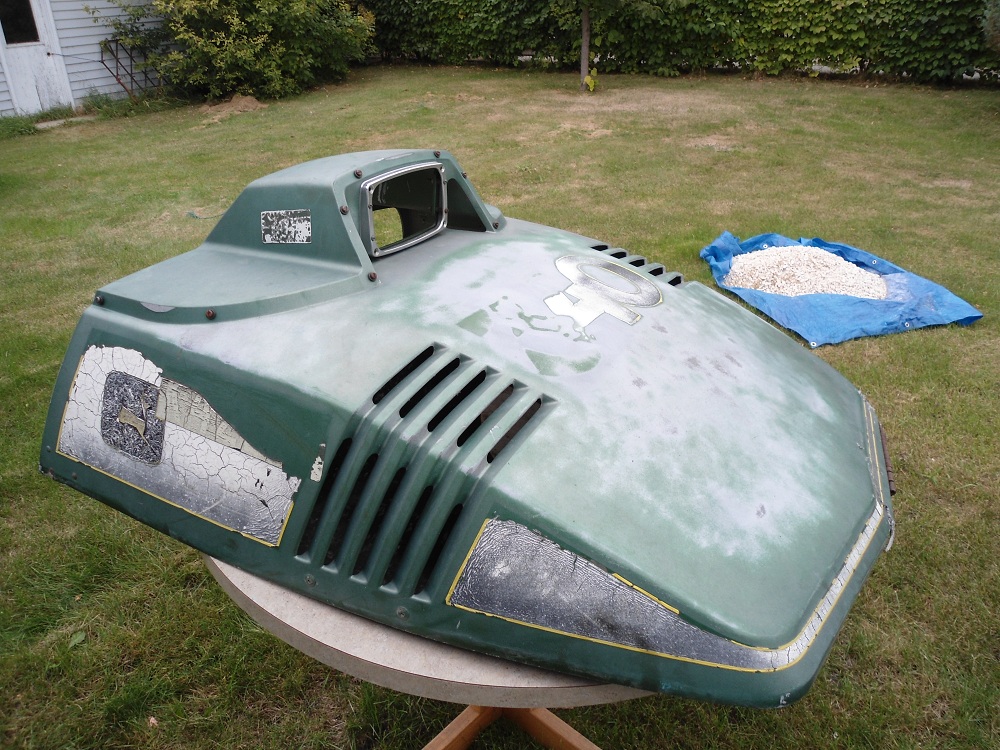

Hood before and after primer, there is a story behind why it is not painted yet...
august 4 2012 001s.jpg
august 4 2012 006s.jpg
Bringing the tunnel to the shop to be painted, look ma! No straps! :clap:
august 4 2012 026s.jpg
(Scott held on to it through the sunroof, I don`t live far, but that`s a good friend)
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

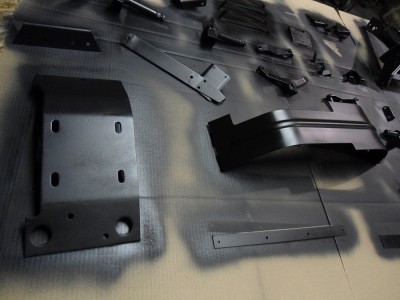

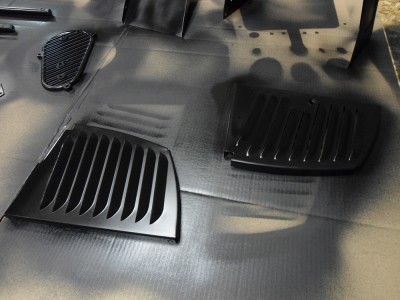

painting blitz black
august 4 2012 013s.jpg
august 4 2012 017s.jpg
august 4 2012 019s.jpg
august 4 2012 025s.jpg
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
User avatar
eppjd
Posts: 252
Joined: Sat Dec 03, 2005 1:00 am
Location: Winnipeg, Manitoba, Canada

Re: 1976 340 Cyclone Restoration

Post by eppjd »

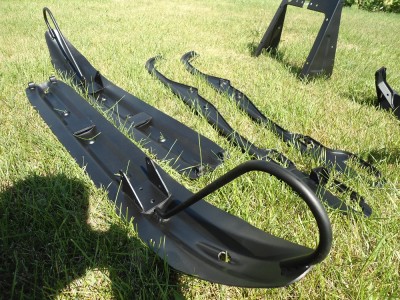

more blitz black
August 6 2012 002s.jpg
August 6 2012 005s.jpg
Adam Epp
Winnipeg, MB, Canada

74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
