Re: 1976 340 Cyclone Restoration

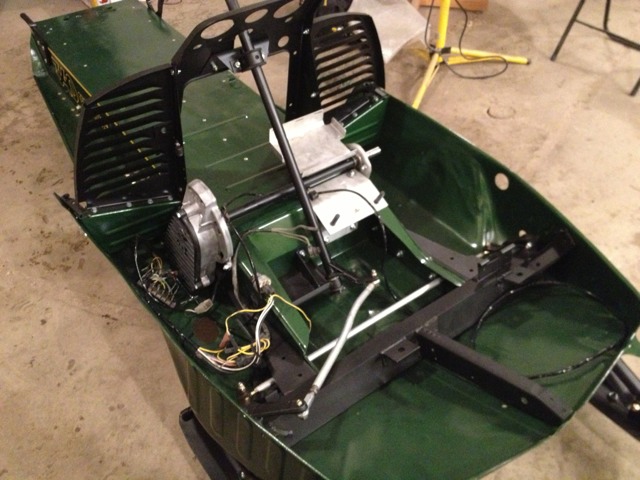

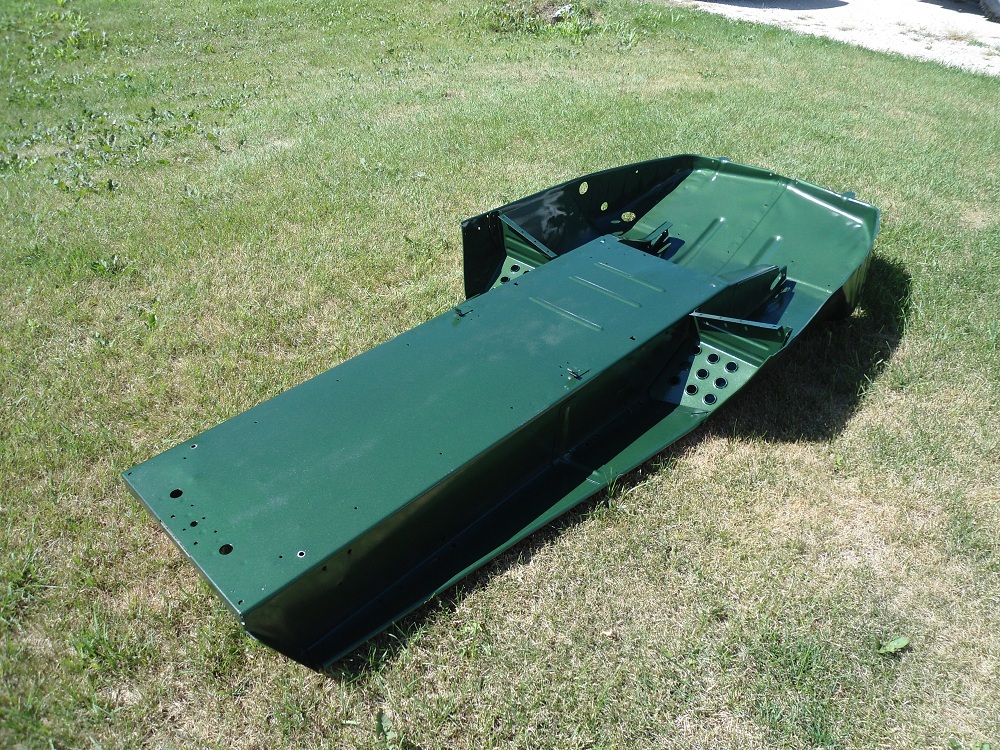

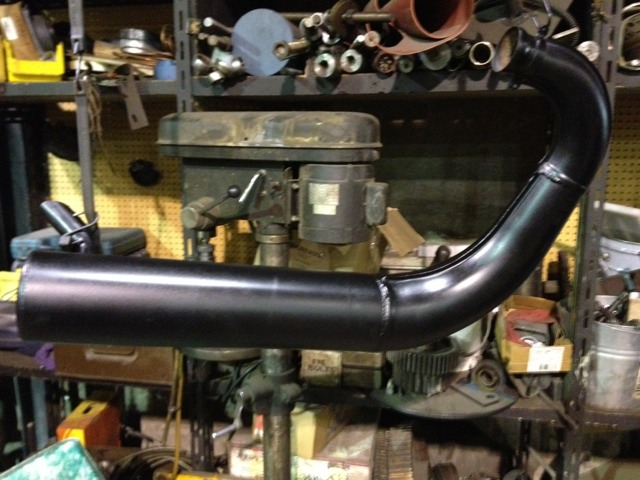

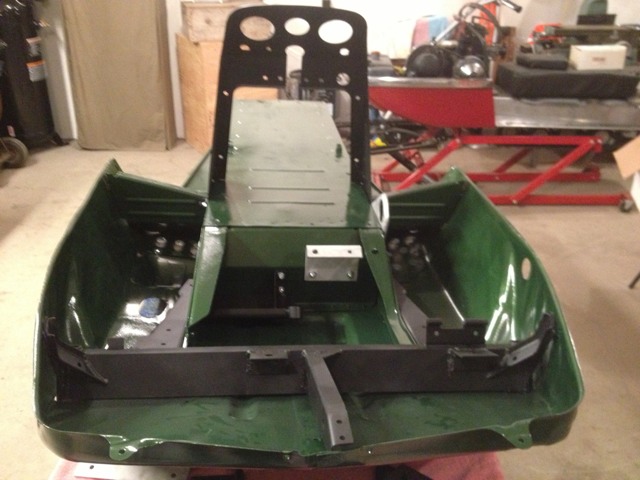

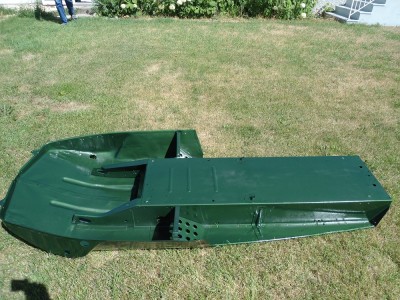

the results of my Mean Green paint
Adam Epp
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
Re: 1976 340 Cyclone Restoration
There was a little dust on the hood and I have in the past did a final wipe down of the primer with acetone. Learnt the hard way that not all primer like acetone. One quick wipe and there was a smear in the primer.
Scott Kyle,
Liquifire: 77 (440) (2), 600: 73,74,75
Massey Whirlwind: 76 440 (2)
Mercury Hurricane 644: 72,73
OMC Snowcruiser: 66,68,70
Rupp: 70 34 Sprint
Allouettte Super Brute: 74 (5)
OTC Deere sled dyno
Liquifire: 77 (440) (2), 600: 73,74,75
Massey Whirlwind: 76 440 (2)
Mercury Hurricane 644: 72,73
OMC Snowcruiser: 66,68,70
Rupp: 70 34 Sprint
Allouettte Super Brute: 74 (5)
OTC Deere sled dyno
Re: 1976 340 Cyclone Restoration
Brock I got an email saying my parts are ready for pickup, Thanks!
Adam Epp
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
-
- Posts: 573
- Joined: Mon Nov 12, 2007 1:00 am
- Real Name: Ed Jones
- Location: northwest ohio
Re: 1976 340 Cyclone Restoration
Sled is looking awsoome Adam, keep up the good work.
Nothing Runs Like A Deere
Re: 1976 340 Cyclone Restoration
Let me know how everthing looks.Thanks Brock
Re: 1976 340 Cyclone Restoration

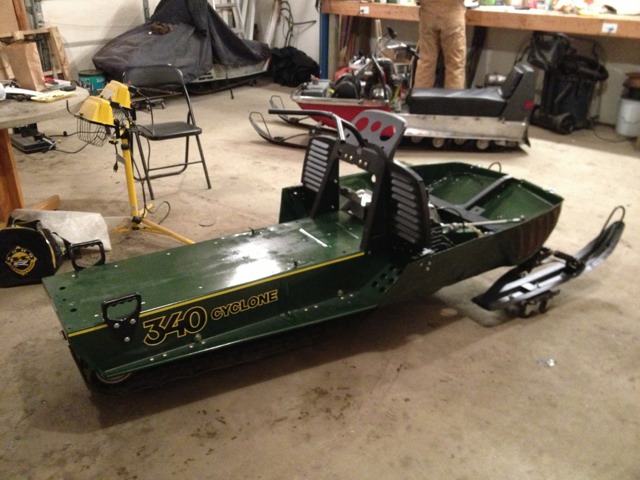

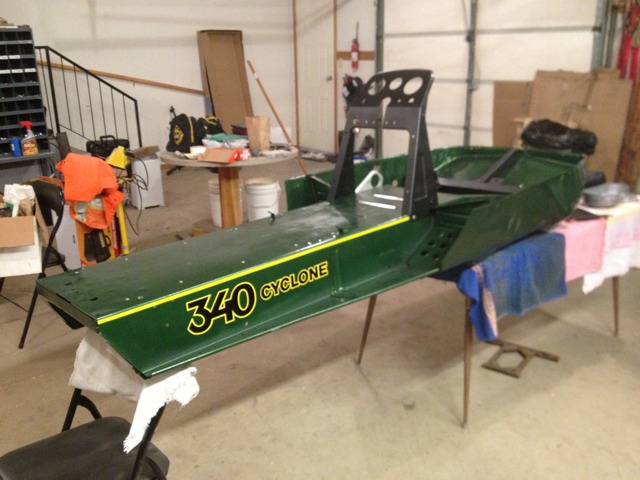

Time for a bit of an update.

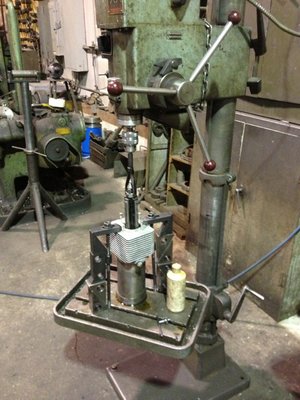

Honing cylinders

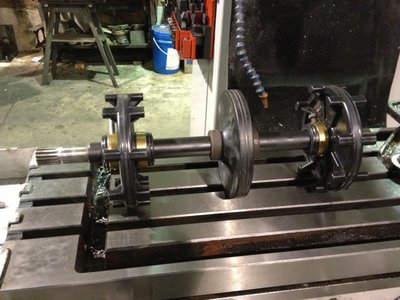

Driveshaft

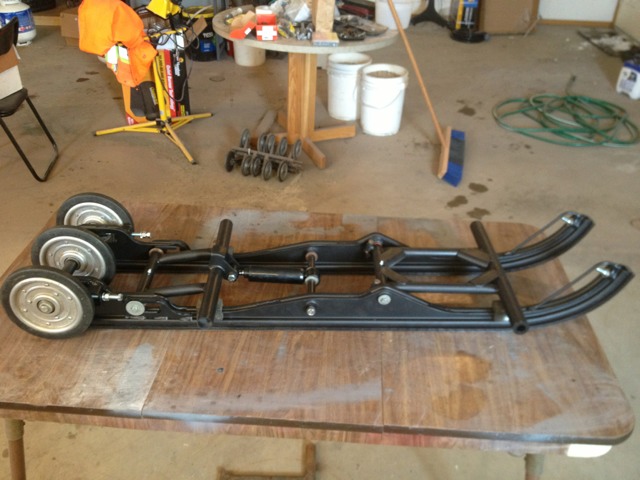

Assembled skid

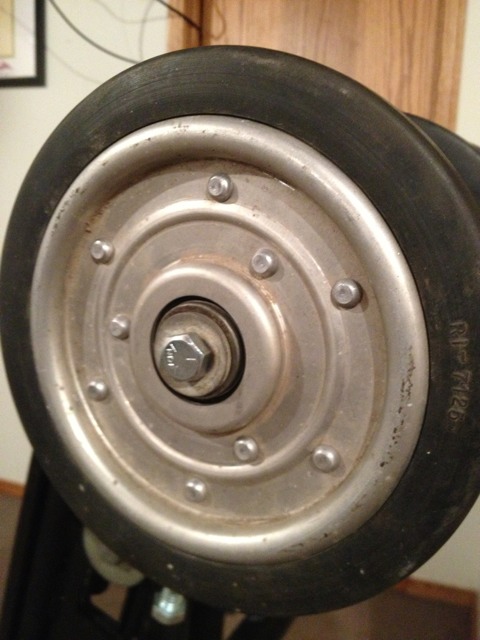

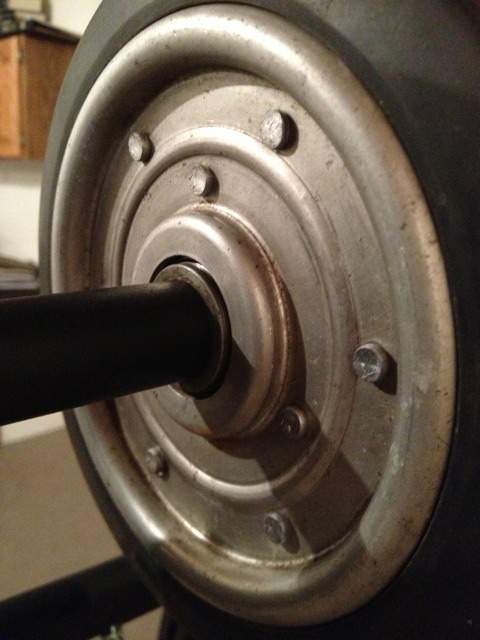

Rebuilt idler wheels
Honing cylinders
Driveshaft
Assembled skid
Rebuilt idler wheels
Adam Epp
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
Re: 1976 340 Cyclone Restoration
Adam Epp
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
Re: 1976 340 Cyclone Restoration
Adam Epp
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
- 400brian
- Posts: 5621
- Joined: Wed Jul 20, 2005 12:00 am
- Real Name: James T. Kirk
- Location: South Central Wisconsin
Re: 1976 340 Cyclone Restoration
Very nice!
I'm happy to see someone can re-build their own Idlers ( note to Rainville ).

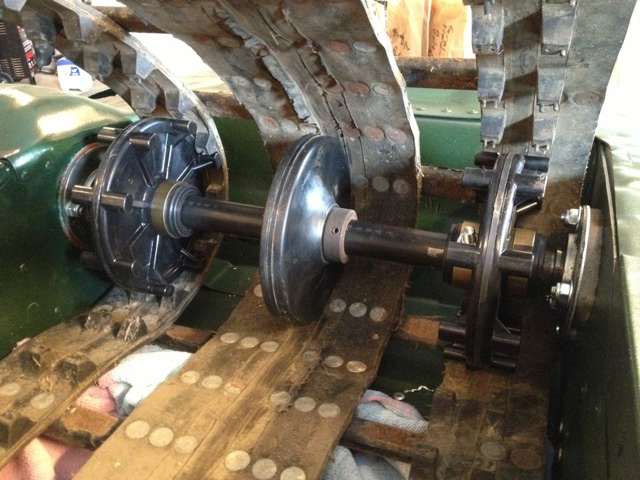

Question; on the drive sprockets, did you press brass collars onto them, what am I seeing?
You are getting there!
I'm happy to see someone can re-build their own Idlers ( note to Rainville ).
Question; on the drive sprockets, did you press brass collars onto them, what am I seeing?
You are getting there!
'09 Vintage Challenge Survivor, and I wasn't late for supper!
'10, '11, '12, '13,'14,'15,'16,'17, '18, 19, 20, 21, 22 Vintage Challenge Survivor !
72 400 restored, Father bought new in '71
73 X8 restored
'74 340 green machine
'74 X8 9 time VC finisher
'78 Spitfire in progress
2 '75 340S 1 running, one on deck
'78 LF 440 future CC clone
'73 Skiroule RTX 440, 500 mi.
Re: 1976 340 Cyclone Restoration
Thanks for the compliment, although I would have liked to ride it this year, haha- maybe December?
As for the drivers, they came with the reinforcing bands around them (although I had to drill through that, I also had to bore the hex out to fit the driveshaft), I wanted the ones that looked closer to the NOS ones but they were unavailable to me. These ones were the right diameter and pitch.
As for the drivers, they came with the reinforcing bands around them (although I had to drill through that, I also had to bore the hex out to fit the driveshaft), I wanted the ones that looked closer to the NOS ones but they were unavailable to me. These ones were the right diameter and pitch.
Adam Epp
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
Re: 1976 340 Cyclone Restoration

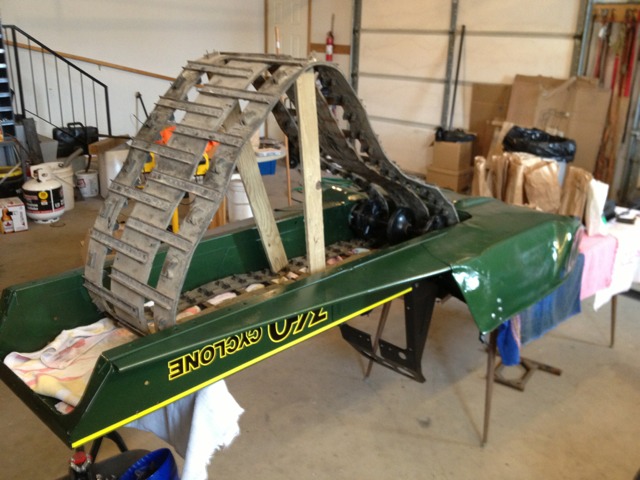

LOOKS GREAT Adam,I gota ask though how many times did that chair fall over trying to wrestle the skid in,I hope none.My luck it would have fell .LOL Lookin good Bud Brock
Re: 1976 340 Cyclone Restoration

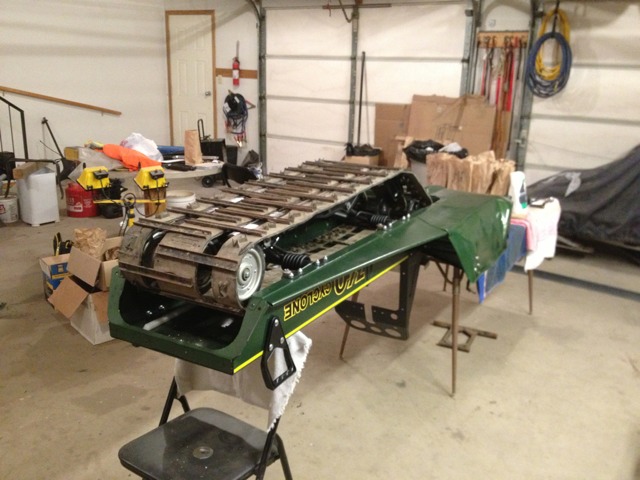

Haha, so you noticed our sweet work stand, not gonna lie Brock- it was a bit sketchy at times. Especially when I realized I had put the springs in upside down the first time around..... Lol luckily there were 2 of us to hold it.
Adam Epp
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
Winnipeg, MB, Canada
74 400 (2 - sold)
75 800 (motor in pieces, next on the resto list)
75 X4 Special (bare tunnel, stripped)
76 340 Cyclone (resto in progress)
76 340 Cyclone (bare tunnel, stripped)
- 400brian
- Posts: 5621
- Joined: Wed Jul 20, 2005 12:00 am
- Real Name: James T. Kirk
- Location: South Central Wisconsin
Re: 1976 340 Cyclone Restoration

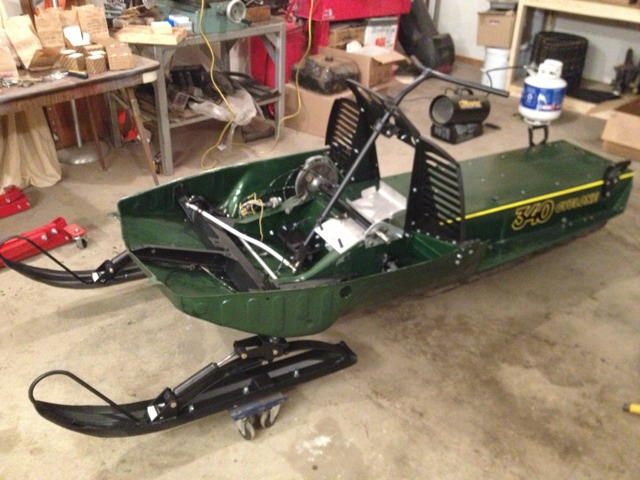

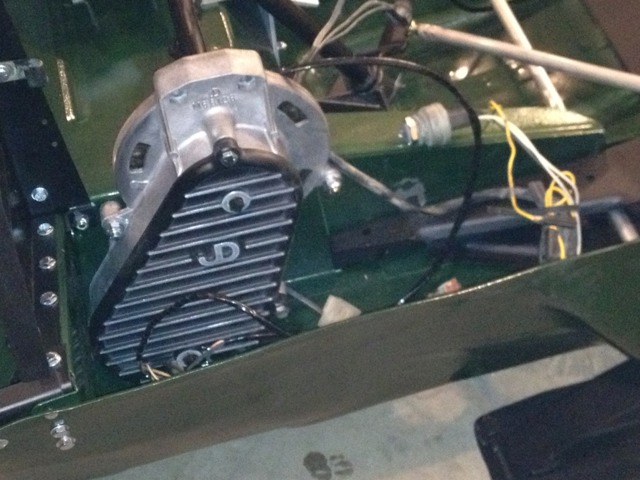

Is there a reason you have the bolts in the driveshaft bearing flanges oriented with the nuts inside the tunnel?
